Ensuring Success in Cryopreservation

The success of cryopreservation, especially when dealing with critical biological samples such as stem cells, CAR-T cells, or other cellular therapies, is highly dependent on the technology used to maintain ultra-low temperatures. Liquid nitrogen (LN2) storage vessels and related systems are fundamental in ensuring long-term viability, safety, and ease of access to these samples.

Here’s a detailed look at how LN2 storage vessels and technology contribute to successful cryopreservation.

1. Key Features of LN2 Storage Vessels

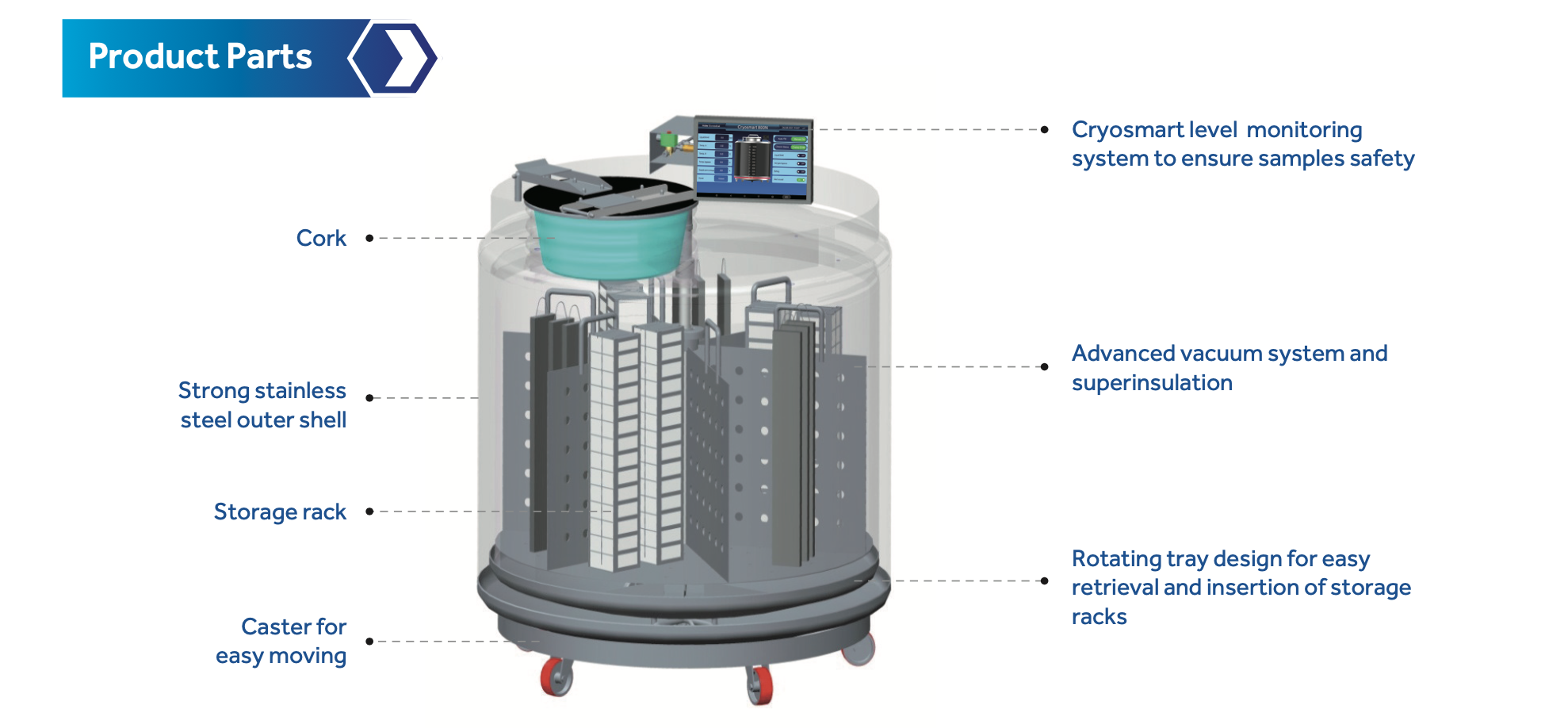

LN2 storage vessels, often referred to as cryogenic tanks, dewars, or LN2 freezers, are designed to store biological specimens at ultra-low temperatures (typically around -196°C). The choice of vessel and associated technology significantly impacts the preservation quality of the samples. Key features that ensure success include:

• Vacuum-Insulated Design: Most LN2 storage vessels use double-walled vacuum insulation to minimize heat transfer. This helps maintain the necessary low temperatures without excessive LN2 consumption, extending the time between refills.
• Temperature Stability: One of the most critical factors in LN2 storage is maintaining a constant temperature. Any fluctuations, even slight, could cause ice crystals to form, damaging the cells. LN2 vessels are designed to provide continuous, stable temperature conditions, with advanced models incorporating active cooling systems or passive holding techniques to prevent deviations.
• Capacity and Scalability: LN2 storage vessels come in various sizes, from small portable units for short-term or transport use to large, stationary cryogenic tanks for biobanks storing thousands of samples. Scalability is crucial, especially in large-scale operations like biobanking, where managing a growing inventory of samples without compromising quality is essential.

2. Types of LN2 Storage Systems

There are different LN2 storage systems tailored to specific use cases in labs, hospitals, and biobanks. The most common include:

• Vapor-Phase LN2 Storage: In vapor-phase systems, samples are stored in the vapor above the liquid nitrogen. This method minimizes the risk of contamination from direct immersion in LN2 while still maintaining ultra-low temperatures. Vapor-phase systems are preferred for sensitive biological samples, such as stem cells and CAR-T cells, as they reduce the risk of cross-contamination.
• Liquid-Phase LN2 Storage: In liquid-phase systems, samples are fully immersed in liquid nitrogen, providing even lower temperatures. This is typically used for samples where contamination risk is lower, and maximum temperature uniformity is required.
• Hybrid Systems: Some advanced systems use a combination of vapor-phase and liquid-phase storage, allowing users to optimize the environment for their specific samples. For instance, stem cells may be stored in vapor, while other cell types might be fully immersed in liquid nitrogen.

3. Monitoring and Automation Technologies

Maintaining consistent LN2 levels and ensuring the stability of the storage environment is essential for successful cryopreservation. Modern storage vessels come equipped with several technologies that facilitate this:

• Automated Fill Systems: Automated LN2 fill systems monitor the levels of liquid nitrogen in the vessel and automatically refill the tank when necessary. This reduces human error and ensures that the samples are never exposed to rising temperatures due to low LN2 levels.

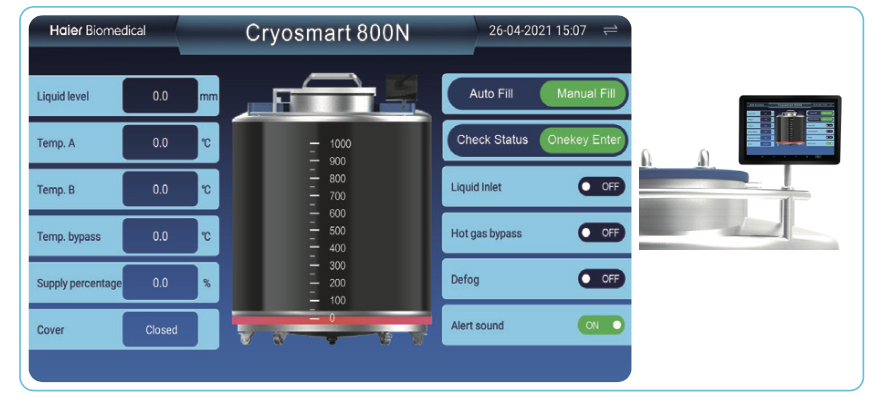

• Temperature Monitoring Systems: Real-time temperature monitoring is crucial in ensuring the long-term viability of samples. Advanced storage systems often come with integrated sensors that continuously measure temperatures throughout the tank. These systems can alert users immediately if temperatures rise above the critical threshold.
• Remote Monitoring and Alerts: Many modern LN2 storage systems now offer remote monitoring capabilities, where users can track the status of their cryogenic systems via cloud-based platforms. This technology allows biobanks and laboratories to receive real-time alerts if the system detects any issues, such as temperature fluctuations, low LN2 levels, or equipment malfunctions.
• Sample Tracking and Inventory Management: Some LN2 storage vessels are integrated with digital sample tracking systems. These systems use barcoding or RFID technology to ensure that samples can be easily located within the storage vessel without excessive exposure to higher temperatures. Efficient inventory management helps labs maintain sample integrity by minimizing handling times.

4. Ensuring Sample Viability and Safety in LN2 Storage

When storing valuable biological samples such as stem cells, CAR-T cells, or embryos, safety and sample integrity are top priorities. Here’s how LN2 storage technology helps:

• Backup Power and Emergency Systems: Advanced cryogenic storage systems often have backup power systems and emergency LN2 tanks that activate if there’s a power failure or mechanical issue. This prevents temperature rise in the event of system malfunctions, ensuring the safety of stored samples.
• Redundant Storage Systems: For critical applications like CAR-T therapies, biobanks often use redundant storage systems where samples are divided and stored in multiple tanks or even in different geographical locations. This strategy ensures that even if one system fails, critical samples remain preserved in a backup.
• Contamination Prevention: LN2 storage vessels are designed to minimize the risk of contamination. This is particularly important when storing cellular therapies like CAR-T cells, where any form of contamination can compromise the treatment. Vapor-phase storage reduces the risk of cross-contamination between samples, and modern vessels include features like filtered venting systems to prevent airborne contaminants from entering.

5. Safety Considerations in Handling LN2 Storage Vessels

While LN2 offers unparalleled storage capabilities, handling liquid nitrogen requires strict safety protocols to avoid hazards such as burns, frostbite, or asphyxiation from nitrogen gas. Best practices include:

• Personal Protective Equipment (PPE): Lab personnel handling LN2 storage vessels must wear appropriate PPE, including cryogenic gloves, face shields, and lab coats. This minimizes the risk of direct contact with the extremely cold nitrogen.
• Ventilation Systems: Since nitrogen gas displaces oxygen, working with LN2 in confined spaces can pose a risk of asphyxiation. Proper ventilation is essential in areas where LN2 is used to ensure that nitrogen gas does not accumulate to dangerous levels.

6. Conclusion: The Synergy of LN2 Storage Vessels and Technology

Ensuring the long-term success of cryopreservation, especially for critical applications like stem cells and CAR-T cell therapies, relies heavily on the use of advanced LN2 storage vessels and related technology. From temperature stability and automated fill systems to real-time monitoring and safety features, these technologies work together to maintain the integrity and viability of samples.

By leveraging state-of-the-art LN2 storage systems, labs, hospitals, and biobanks can ensure that their biological samples remain preserved in optimal conditions, ready for use in cutting-edge research or life-saving therapies when needed.
