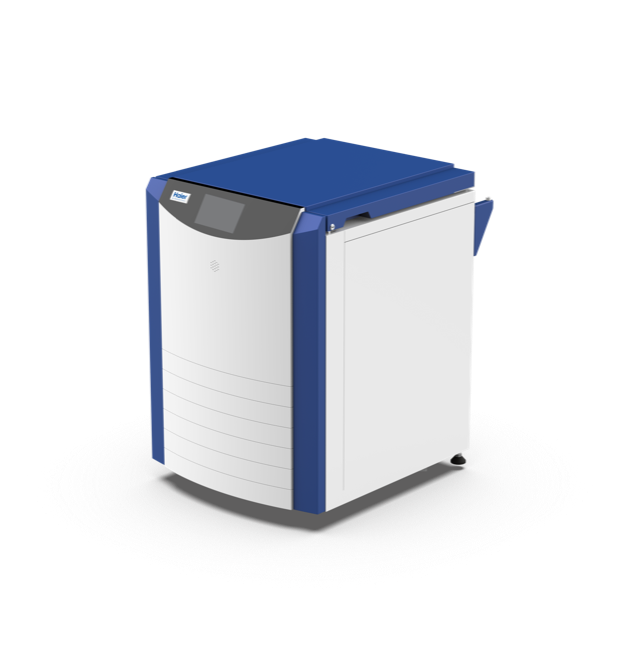

CryoBio Z Wide Neck LN2 Biobank Series

The wide neck CryoBio Z series is designed for users wanting quick and convenient access to all stored samples. It comes with an integrated intelligent monitoring system which support USB data export. Wide neck series is applicable for cryogenic storage of plasma, cell tissue and various biological samples in hospitals, laboratories, scientific research institutes, disease control centers, major sample banks and other facilities.

Download

Product Features

Easy to Access

The full opening design and automated lid opening makes it convenient and quick to store and retrieve samples.

Reduced Frosting and Freezing

The brand-new cover and interlayer exhaust structure design effectively minimises frost buildup at exhaust port.

Brand-new Intelligent Monitoring System

The monitoring system designed with the latest intelligent monitoring application and complement an optional IoT module that can connect to the cloud platform. Integrating three screens, with access to the remote alarm via APP, e-mail, with other options available.

Highest Degree of Safety

Dual lock for double the protection of precious samples.

The liquid nitrogen filter effectively reduces impurities which prolongs the service life of the whole machine.

Ergonomic Design with Multiple Interfaces

Manufactured with its own USB interface for data export.

The universal caster at the bottom makes easy to move and the djustable back brake means convenient to fix it place.

Battery backup in the event of a power failure.

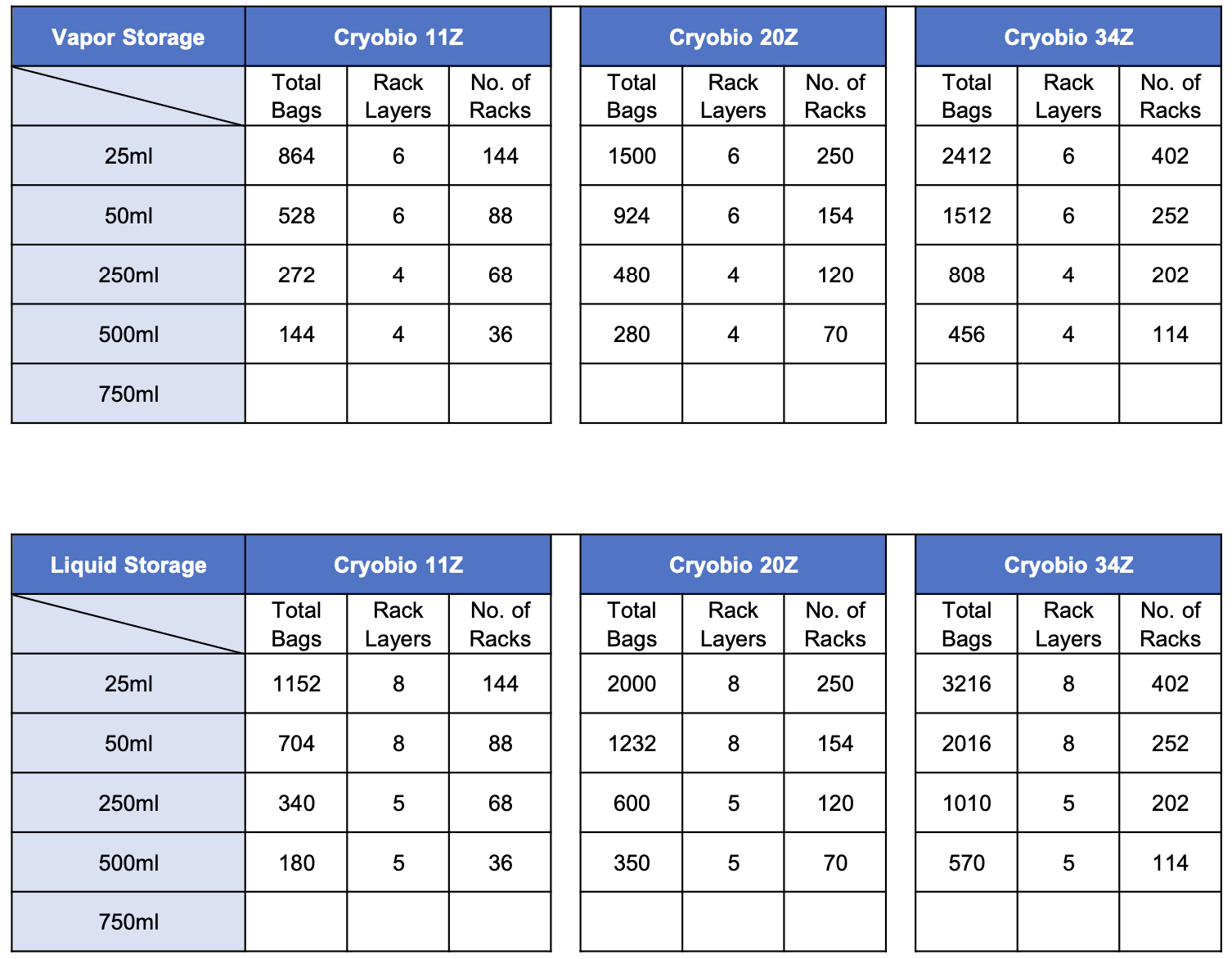

Option for Blood Bag Storage

Store 25ml-750ml blood bags - images for more information

Specifications

Model	LN2 Volume (L)	Exterior Dimensions (WDH)(mm)	Static Evaporation (L/Day)	Empty Weight (kg)	Inside Neck Diameter (mm)
CryoBio 11Z	200	1125 860 1190	7	180	620
CryoBio 20Z	340	1195 960 1190	10	260	790
CryoBio 34Z	550	1410 1100 1190	12	400	1000
